轻敲模式，尺寸：3.4 x 1.6 x 0.3mm
| 技术数据: | ||
| Value | Range | |
| Resonant Freq. | 300 kHz | +/-100 kHz |
| Force Constant | 40 N/m | 20 - 75 N/m |
| Length | 125 µm | +/-10 µm |
| Mean Width | 30 µm | +/-5 µm |
| Thickness | 4 µm | +/-1 µm |
| Tip Height | 17 µm | +/-2 µm |
| Tip Set Back | 15 µm | +/-5 µm |
| Tip Radius | <10 nm (Tap 300; 300AL; 300GD) | |
| Half Cone Angle | 20°-25° along cantilever axis 25°-30° from side 10°-at the apex | |
硅探针无涂层：Tap300-G

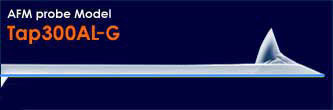

硅探针30nm铝涂层：Tap300AL-G

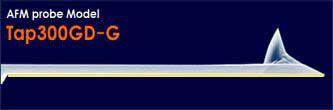

硅探针部分镀70nm金涂层：Tap300GD-G
硅探针整体镀70nm金涂层：Tap300GB-G
硅探针Cr/Pt涂层（5nm Cr 覆盖 25nm Pt）：ElectriTap300-G
硅探针，尖端侧15nm类金刚石涂层,探测器侧30nm铝涂层:TAP300DLC
