轻敲模式，尺寸：3.4 x 1.6 x 0.3mm
| 技术数据: | ||
| Value | Range | |
| Resonant Freq. | 150 kHz | +/-75 kHz |
| Force Constant | 5 N/m | 1.5 - 15 N/m |
| Length | 125 µm | +/-10 µm |
| Mean Width | 25 µm | +/-5 µm |
| Thickness | 2.1 µm | +/-1 µm |
| Tip Height | 17 µm | +/-2 µm |
| Tip Set Back | 15 µm | +/-5 µm |
| Tip Radius | <10 nm (Tap150-G, Tap150AL-G) <15 nm (Tap150DLC) Also see individual probes. | |
| Half Cone Angle | 20°-25° along cantilever axis 25°-30° from side 10°-at the apex | |

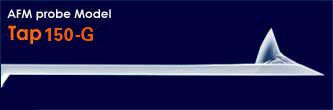

硅探针无涂层：Tap150-G

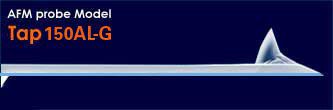

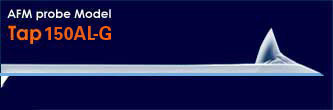

硅探针30nm铝涂层：Tap150AL-G

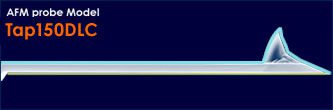

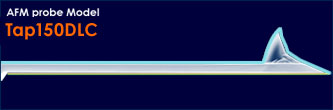

硅探针，尖端侧15nm类金刚石涂层,探测器侧30nm铝涂层:TAP150DLC
