Contact 系列 AFM 探头主要适用于接触模式，脉冲力模式 (PFM)。

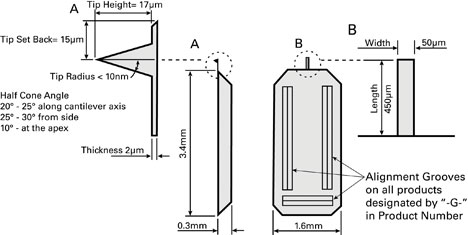

| 技术数据: | ||
| Value | Range | |
| Resonant Freq. | 13 kHz | +/-4 kHz |
| Force Constant | 0.2 N/m | 0.07 - 0.4 N/m |
| Length | 450 µm | +/-10 µm |
| Mean Width | 50 µm | +/-5 µm |
| Thickness | 2 µm | +/-1 µm |
| Tip Height | 17 µm | +/-2 µm |
| Tip Set Back | 15 µm | +/-5 µm |
| Tip Radius | <10 nm (Contact; ContAL; ContGD; ContGb) <25nm (ElectriCont) <15nm (ContDLC) Also see individual probes. | |
| Half Cone Angle | 20°-25° along cantilever axis 25°-30° from side 10°-at the apex | |

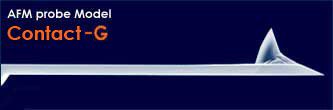

硅探针无涂层：Contact-G

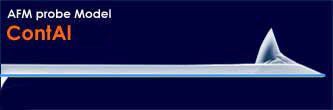

硅探针30nm铝涂层：ContAl

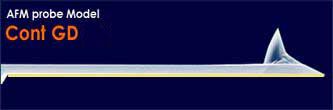

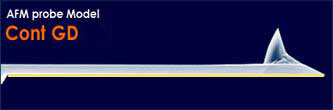

硅探针部分镀70nm金涂层：ContGD

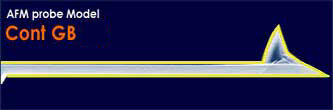

硅探针整体镀70nm金涂层：ContGB

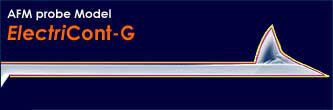

硅探针Cr/Pt涂层（5nm Cr 覆盖 25nm Pt）：ElectriCont-G

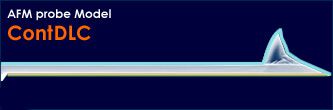

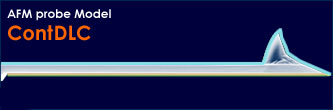

硅探针，尖端侧15nm类金刚石涂层,探测器侧30nm铝涂层:ContDLC
